Cleanroom
CLEAN ROOM
Provides a clean, stable production environment for precision materials processing and lamination.
Taiwan Taoyua
Waih Jing Enterprise Co., Ltd.
WAIH JING ENTERPRISE CO., LTD.
No. 6, Dinghu 3rd St., Guishan Dist., Taoyuan City, Taiwan
Founded in 2000 and located in Guishan District, Taoyuan City, Waih Jing Enterprise Co., Ltd. specializes in precision die-cutting, lamination, slitting, cutting, and electronic materials processing. Combining automated production equipment, clean manufacturing environments, and comprehensive quality inspection capabilities, we provide one-stop services from rapid prototyping to mass production.
Established
2000
Employees
130
Core Processes
Precision Die-Cutting / Lamination
Production Equipment
PRODUCTION EQUIPMENT
Our Taoyuan facility is equipped with automated production equipment for materials slitting, cutting, lamination, and precision die-cutting, providing one-stop electronic materials processing services from rapid prototyping to mass production.
Laser Cutting Machine
Max. Processing Size: 700 × 1000 mm
Digital Cutting Plotter
Max. Processing Size: 580 × 880 mm
Slitting Machine
Max. Processing Width: 1300 mm
Tape Cutting Machine
Max. Processing Width: 1300 mm
Adhesive Laminating Machine
Max. Processing Width: 650 mm
Skip-Feed Machine
Max. Processing Width: 1250 mm
Pneumatic Punch Press
Max. Processing Width: 1300 mm
Inline Die-Cutting System
Max. Processing Size: 440 × 440 mm
Rotary Die-Cutting Machine
Max. Processing Width: 259 mm
Factory Environment
FACTORY ENVIRONMENT
Our Taoyuan facility features cleanrooms, Class 1,000 and Class 10,000 cleanrooms, a yellow light room, and dedicated inspection and packing areas. Production environments are tailored to product and material requirements to reduce the risk of foreign particles and process contamination.
Class 10,000 Cleanroom
CLASS 10,000 CLEAN ROOM
Maintains controlled cleanliness to meet mass production requirements for electronic materials and precision components.
Class 1,000 Cleanroom
CLASS 1,000 CLEAN ROOM
Provides a higher level of cleanliness for products with demanding precision and cleanliness requirements.
Yellow Light Room
YELLOW LIGHT ROOM
Provides a dedicated environment for light-sensitive materials, minimizing the effects of light exposure on material properties.
Cleanroom Inspection Area
CLEAN ROOM INSPECTION AREA
Visual and dimensional inspections are performed in a clean environment to ensure products meet quality requirements.

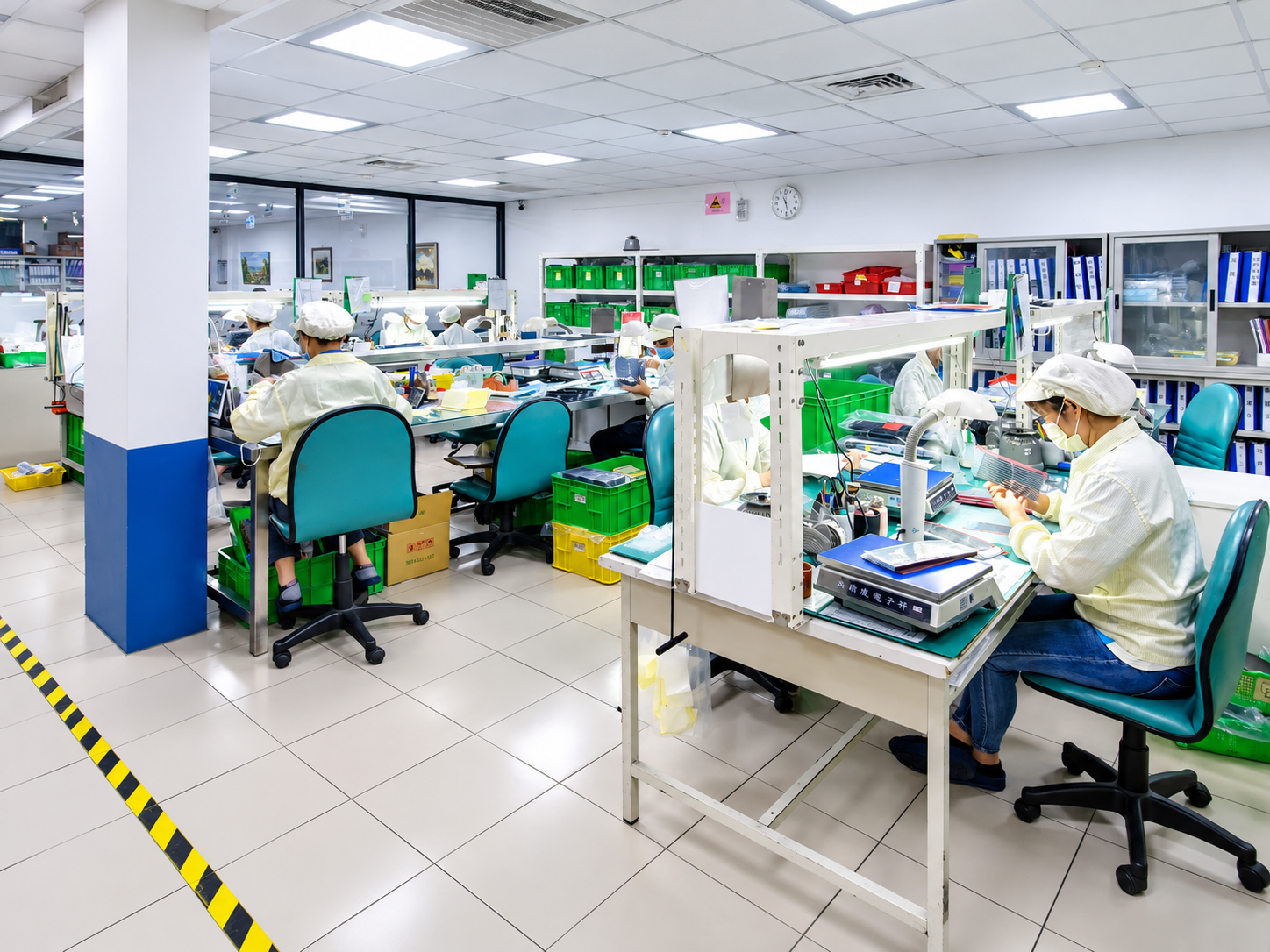

QC Inspection & Packing Area
QC INSPECTION & PACKING AREA
Final inspection, quantity verification, and packing ensure shipment quality and product protection.
Quality Inspection Equipment
QUALITY INSPECTION EQUIPMENT
Our Taoyuan facility is equipped for vision measurement, physical property testing, impedance testing, and environmental monitoring. These capabilities verify product dimensions, appearance, and material properties to ensure consistent quality throughout production and before shipment.
2.5D Automatic Measuring System
Measures product dimensions, hole positions, and profile accuracy.
Tensile Testing Machine
Tests tape peel strength and material adhesion performance.
Illuminance Meter
Verifies lighting levels in production and inspection areas.
Hardness Tester
Measures the hardness of foam, rubber, and other materials.
Impedance Tester
Verifies the surface impedance of conductive and antistatic materials.
KEYENCE Vision Inspection System
Provides rapid measurement of product profiles, dimensions, and positional accuracy.
Digital Magnifier
Inspects product appearance, cut edges, and fine defects.
Vernier Caliper
Verifies product length, width, thickness, and hole diameter.
Particle Monitor
Monitors airborne particles and dust in clean environments.
Precision Manufacturing Process
MANUFACTURING PROCESS
From materials slitting, lamination, and precision die-cutting to quality inspection, packing, and shipping, our Taoyuan facility integrates processes according to product structure and processing requirements, delivering one-stop services from rapid prototyping to consistent mass production.
01
Material Slitting
SLITTING
02
Lamination
LAMINATION
03
Precision Die-Cutting
DIE CUTTING
04
Quality Inspection
INSPECTION
05
Packing & Shipping
PACKING
Global Manufacturing Network
GLOBAL MANUFACTURING NETWORK
With manufacturing locations in Taiwan, China, and Vietnam, Waih Jing integrates precision die-cutting, materials processing, and manufacturing resources to offer customers flexible local production and supply services.
